Inductive Subsea connection

Power and Communication in one interface

USB A.01 - 0 - 100 Watt

Subsea "USB" - Inductive Subsea connection

Small connectos for Instrumentation and Sensors.

Max 60 Watt power and 90Megabit of Ethernet combined with RS232/RS485 makes this a cost efficient competito to Tronic in many Cases.

ROV operated and piggy back on hydrauic connection

The system has several types of configuration, dirrect ROV interface or flange interface for piggy back of an hydraulic conenction.

The system is 100% sealed from seawater and thus not possible to shourt surcuit. No pins to be mated and thus no pin configuration issues. Galvanically sealing of male and female makes the system "optical" connected.

USB A.01 50 Watt 90 megabite

Sensor and Ethernet video conenction
ba5147 and ba5220

ba3172 and ba3193

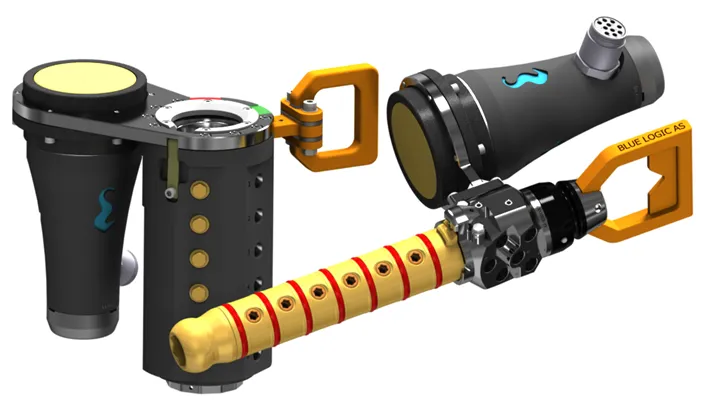

ba2564 2
